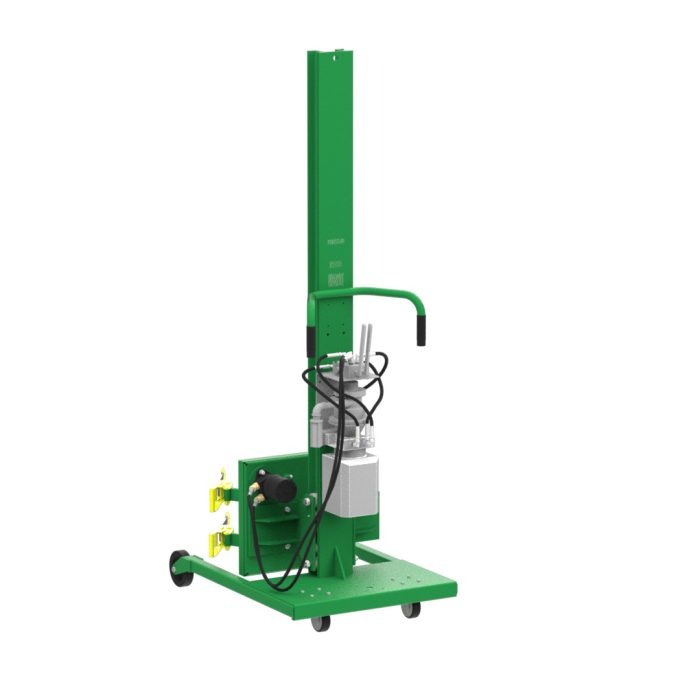

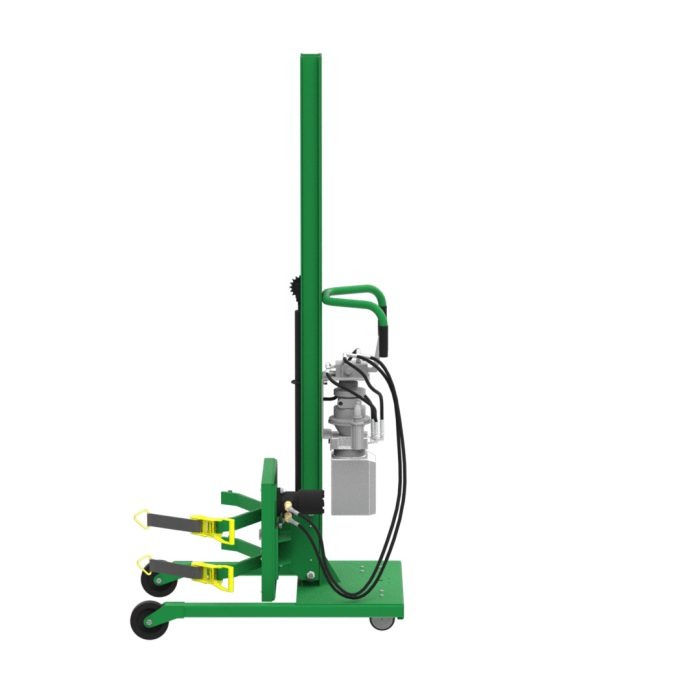

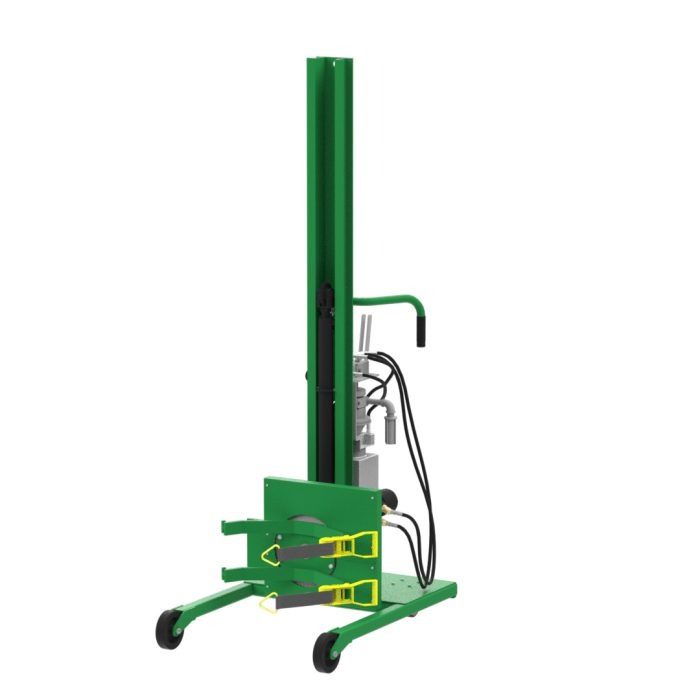

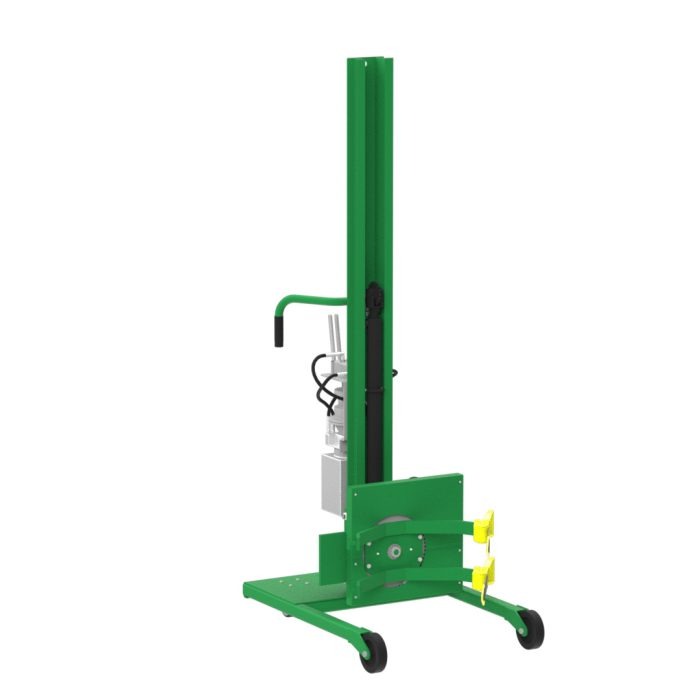

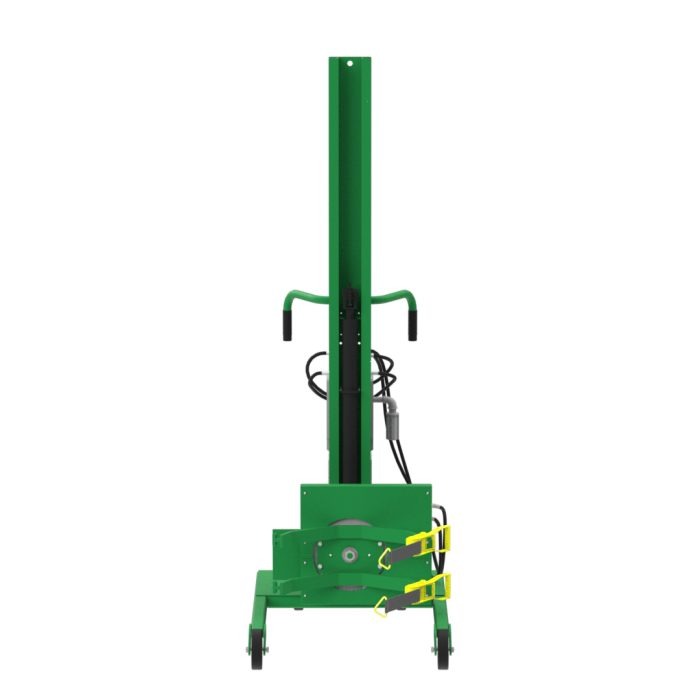

78″ Pneumatic Semi-Powered Drum Lift & Rotator, Strap, Straddle
MSRP: $8,045.00
- Safely and ergonomically lift, rotate, and maneuver drums throughout your facility.
- Standalone unit (no forklift required).
- Pneumatic powered lift and rotate, manual drive.
- Pneumatic power source for spark resistant environments (air power source required).
- Raise middle of drum to a maximum height of 71” off the floor.
- Minimum center grip height of 13” off the floor.
- Rotate 360° continuously in either direction, at 6 RPM
- Straddle legs extend under pallets, shelving, or on outside of drums.
- Dual ratchet straps for securing drums.
- Compatible with steel/plastic/fiber drums, 10-55 gallons (14-24” in diameter).
- Manuevers easily on 4 casters: (2) 6″ front rigid, (2) 4″ rear swivel.
- 43″L x 30″W x 78″H.
- 800 lb. capacity.
- Heavy gauge steel construction.
- Premium powder coat paint finish in green.
- Accessory options include: floor lock (sold separately).
- Ships fully assembled, ready to use.
- Made in the U.S.A.
Valley Craft’s 78” Pneumatic Semi-Powered Drum Lifts and Rotators simplify the lifting and rotating of drums by utilizing air power. Drums clamp and lift up to 71” in height in less than 30 seconds, and can rotate up to 360° continuously in either direction. Compatible with all drum styles (steel, plastic and fiber), units offer convenient push/pull transporting as needed.
The included straps are compatible with drums ranging from 14-24” in diameter and secures them to the unit. With an 800 lb. capacity it is simple to maneuver on (4) casters ((2) 6” front rigid, and (2) 4” rear swivel). Designed as a standalone lift and rotator, forklift assistance is not required. Optional floor locks are available (sold separately).
Valley Craft’s Pneumatic Semi-Powered Drum Lifts and Rotators improve the safety and productivity of any facility that is lifting, rotating, and transporting drums. Constructed of heavy gauge steel with a premium powder coat paint finish in green, you can be confident these units are built to last. All products are shipped fully assembled, ready-to-use, and are made in the U.S.A.

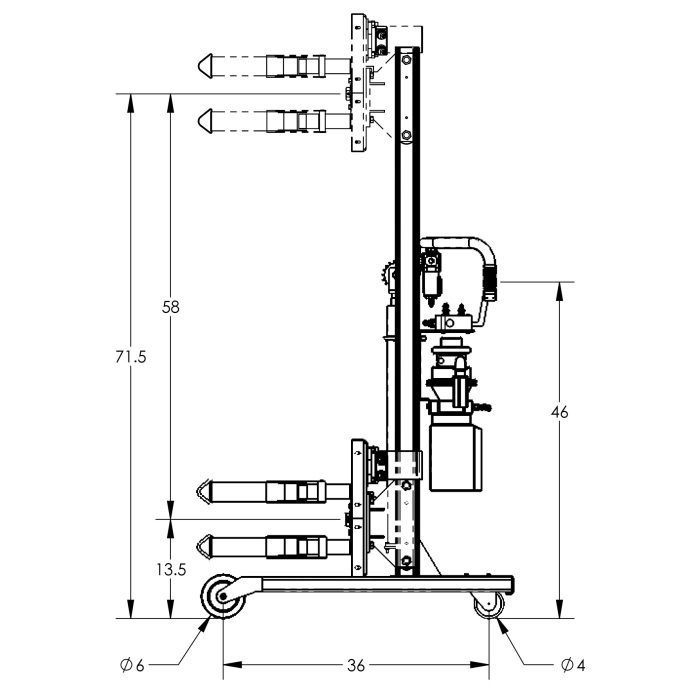

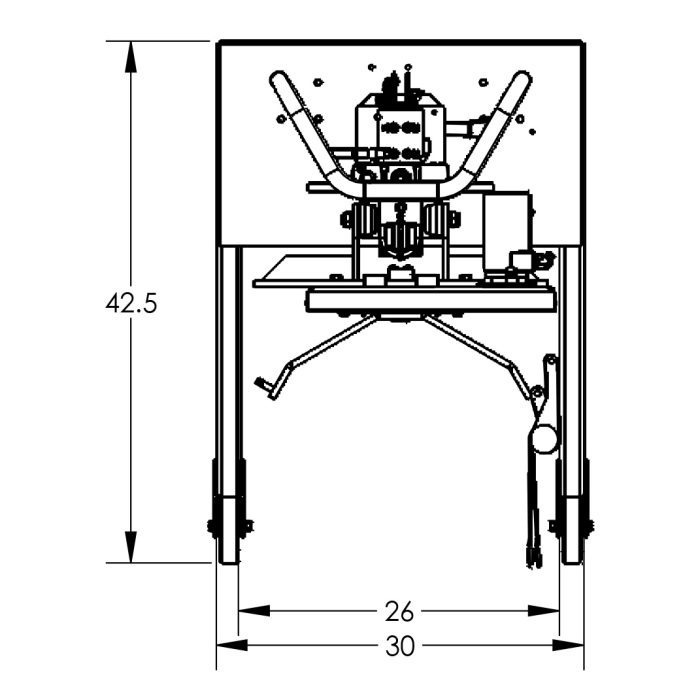

| Overall Dimensions L x W x H (in): | 43 x 30 x 78 |
| Product Weight (lb): | 490 |
| Load Capacity (lb): | 800 |
| Color: | Green |
| Drum Type: | Steel, Plastic, Fiber |
| Drum Diameter (in): | 14 – 24 |
| Drum Capacity (gal): | 30/55 |
| Function – Lift: | Air Powered Hydraulic Motor |
| Function – Grip: | Ratchet Straps |
| Function – Rotate: | Air Powered Hydraulic Motor |
| Lift Height (in): | 71 |
| Lift Distance (in): | 58 |
| Lift Speed (in/sec): | 3.4 |
| Turn Radius: | 44 |
| Rotate Speed: | 6 RPM |
| Base Style: | Straddle |
| Power Source: | Pneumatic Air Line |
| Caster Configuration: | (2) 6″ Front Rigid & (2) 4″ Rear Swivel |
Locate the model tag on your product to find your model number and manufacture date.
Note: Tag design and location may vary by unit.
