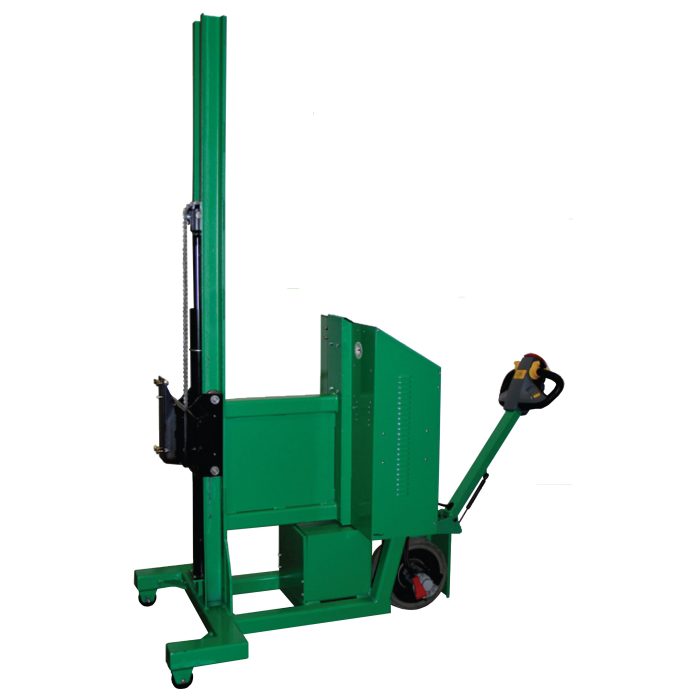

90″ Fully Powered Universal Lift & Stacker, Counterweighted
MSRP: $14,995.00
- Safely and ergonomically lift and/or rotate a variety of materials throughout facility.
- Solves a variety of material handling needs with one base unit.
- Base unit works with a variety of optional attachments.
- Standalone unit (no forklift required).
- 24V battery powered lift and drive.
- Raise material to a maximum height of 84” off the floor.
- Minimum center grip height of 13” off the floor.
- Counterweighted unit butts directly up to pallets, shelving, or other items.
- Compatible with interchangeable platform, forks, and drum attachments.
- Drive up to 2.5 MPH on (2) 5″ front swivel casters and (1) 12″ powered rear wheel.

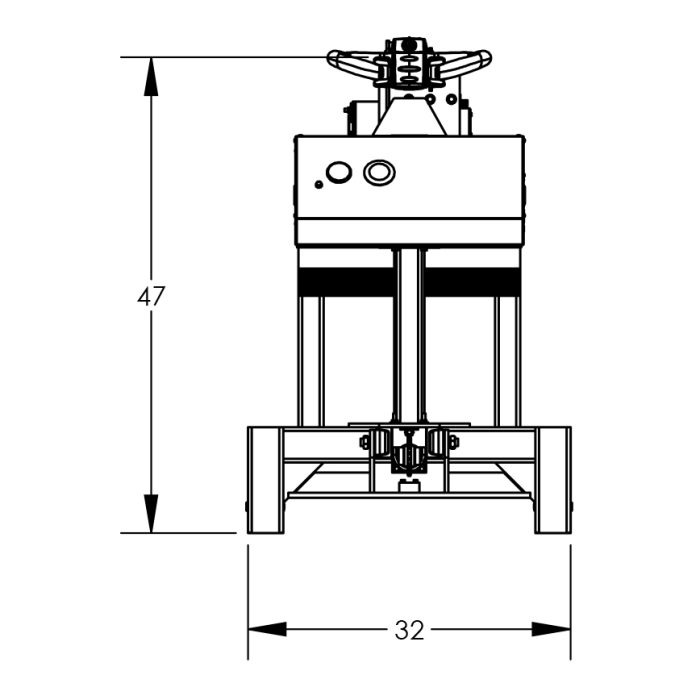

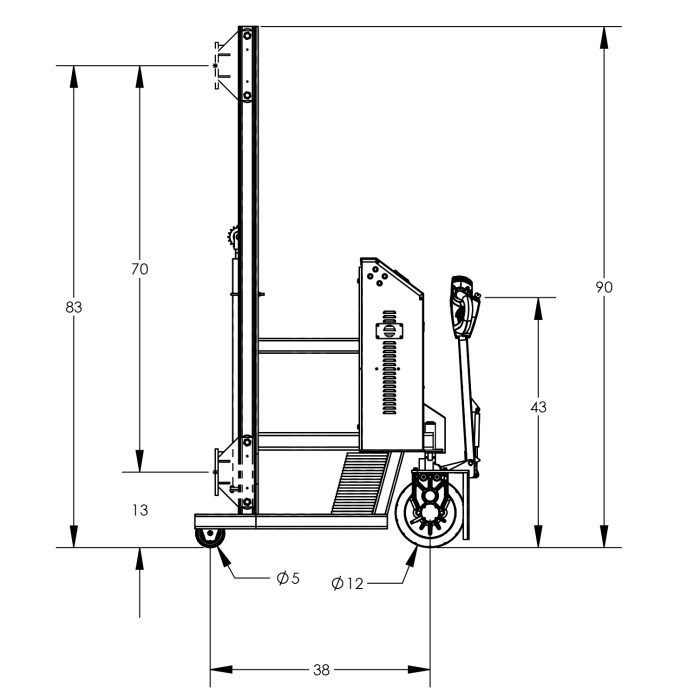

- 47”L x 32”W x 90”H.
- 1,000 lb. capacity.
- Heavy gauge steel construction.
- Premium powder coat paint finish in green.

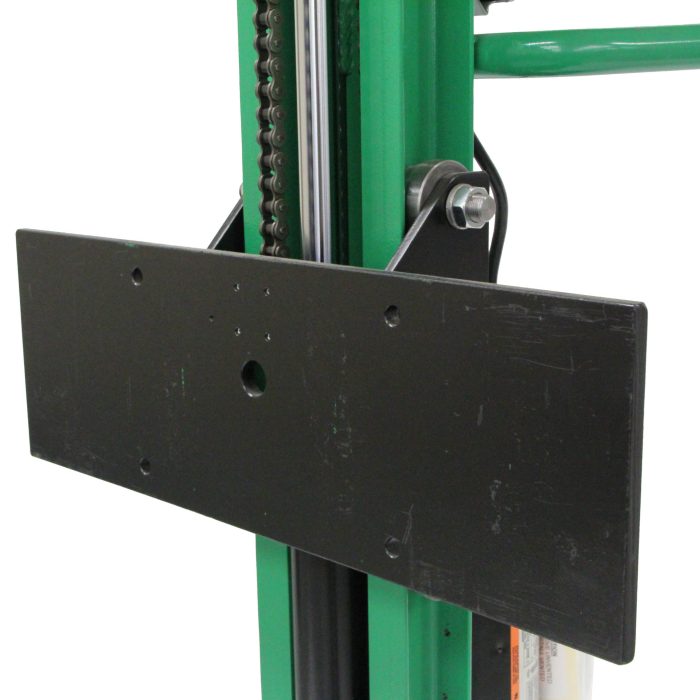

- Accessory options include: drum grip, drum beak, drum rotator, drum tilter, pallet forks, and steel platform (sold separately). Backplate makes attachments interchangeable.
- Ships fully assembled, ready to use.
- Made in the U.S.A.
Valley Craft’s 90" Fully Powered Steel Universal Lift & Stacker is the perfect solution to handle all your material handling needs with just one base unit. The base unit comes with a flexible mount that works with a variety of optional accessory attachments. Platforms, forks, and a variety of drum handling attachments can all easily be connected to the unit for simple operation. All accessories are interchangeable so you can use one unit for a variety of applications by purchasing different attachments and simply switch out attachments as needed.
The powered (leave for fully powered and semi powered options only) lift raises to a height of 84” less than 30 seconds. The heavy duty wheels provide simple maneuvering and a 1,000 lb. capacity. The fully powered design has a powered drive system as well as a powered lifting/lowering operation. The counter-weighted base improves handling with the ability to butt directly up to pallets, shelving, or other units without having to worry about extended front legs getting in the way. Designed as a standalone lift, forklift assistance is not required.
Valley Craft’s Steel Universal Lifts & Stackers are built to last utilizing heavy gauge material with a premium powder coat paint finish in green. Products are shipped fully assembled, and made in the U.S.A.
| Overall Dimensions L x W x H (in): | 47 x 32 x 90 |
| Product Weight (lb): | 1165 |
| Load Capacity (lb): | 1000 |
| Color: | Green |
| Drum Type: | Steel, Plastic, Fiber |
| Function – Lift: | Battery Powered Hydraulic Motor |
| Lift Height (in): | 84 |
| Lift Distance (in): | 71 |
| Lift Speed (in/sec): | 3.4 |
| Turn Radius: | 39 |
| Drive Speed (mph): | 1 – 2.5 |
| Base Style: | Counterweighted |
| Power Source: | 24V Battery Powered, Rechargable |
| Caster Configuration: | (2) 5″ Front Rigid & (1) 12″ Rear Powered Wheel |
