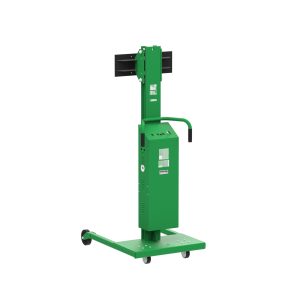

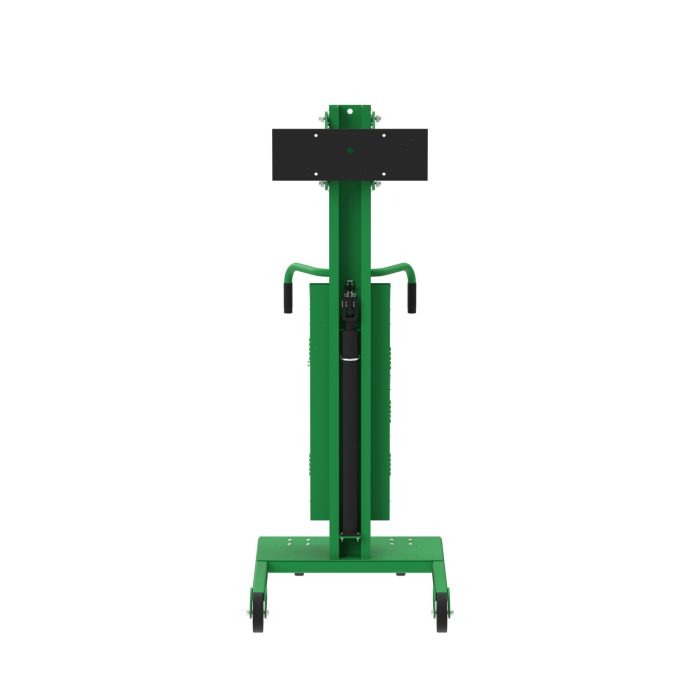

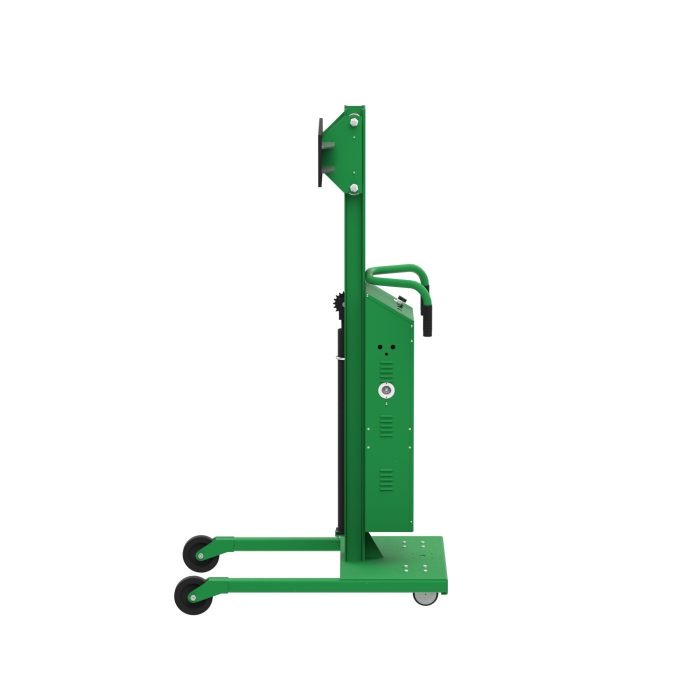

90″ Semi-Powered Universal Lift & Stacker, Straddle
MSRP: $5,995.00
- Safely and ergonomically lift and/or rotate a variety of materials throughout facility.
- Solves a variety of material handling needs with one base unit.
- Base unit works with a variety of optional attachments.
- Standalone unit (no forklift required).
- 12V battery powered lift, manual drive.
- Raise material to a maximum height of 84” off the floor.
- Minimum center grip height of 13” off the floor.
- Straddle legs extend under pallets, shelving, or on outside of drums.
- Compatible with interchangeable platform, forks, and drum attachments.
- Manuevers easily on (2) 6″ front and (2) 4″ rear casters: front rigid, rear swivel.
- 43”L x 30”W x 90”H.
- 800 lb. capacity.
- Heavy gauge steel construction.
- Premium powder coat paint finish in green.

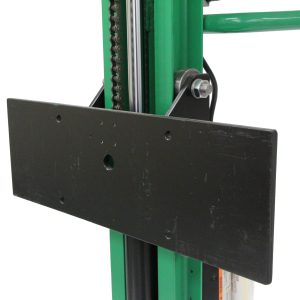

- Accessory options include: drum grip, drum beak, drum rotator, drum tilter, pallet forks, and steel platform (sold separately). Backplate makes attachments interchangeable.
- Ships fully assembled, ready to use.
- Made in the U.S.A.
Valley Craft’s 90” Semi-Powered Steel Universal Lift & Stacker is the perfect solution to handle all your material handling needs with just one base unit. The base unit comes with a flexible mount that works with a variety of optional accessory attachments. Platforms, forks, and a variety of drum handling attachments can all easily be connected to the unit for simple operation. All accessories are interchangeable so you can use one unit for a variety of applications by purchasing different attachments and simply switch out attachments as needed.
The powered lift raises to a height of 84” less than 30 seconds. The heavy duty wheels provide simple maneuvering and a 800 lb. capacity. The semi-powered design has a manual easy push drive, and a powered lifting/lowering system built in. The straddle legs provides additional stability and make the unit lighter and easier to maneuver around. Designed as a standalone lift, forklift assistance is not required.
Valley Craft’s Steel Universal Lifts & Stackers are built to last utilizing heavy gauge material with a premium powder coat paint finish in green. Products are shipped fully assembled, and made in the U.S.A.

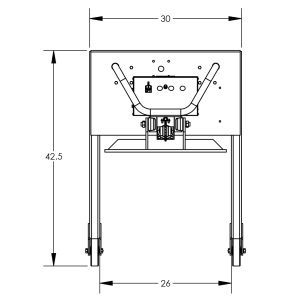

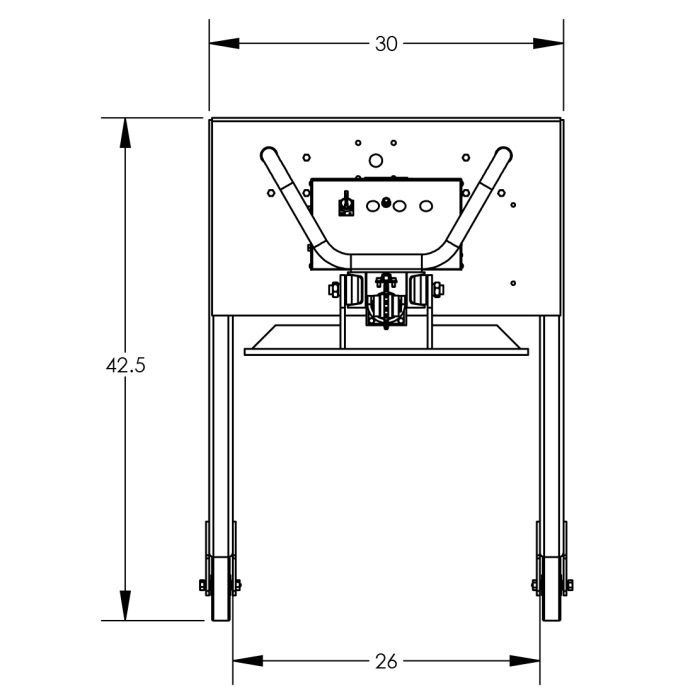

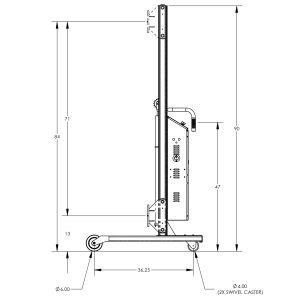

| Overall Dimensions L x W x H (in): | 43 x 30 x 90 |
| Product Weight (lb): | 490 |
| Load Capacity (lb): | 800 |
| Color: | Green |
| Function – Lift: | Battery Powered Hydraulic Motor |
| Lift Height (in): | 84 |
| Lift Distance (in): | 71 |
| Lift Speed (in/sec): | 3.4 |
| Turn Radius: | 44 |
| Base Style: | Straddle |
| Power Source: | 12V Battery Powered, Rechargable |
| Caster Configuration: | (2) 6″ Front Rigid & (2) 4″ Rear Swivel |
