Deluxe Telescopic Fully Powered Drum Rotator & Lift
MSRP: $25,995.00
- Safely and ergonomically lift, rotate, and maneuver drums throughout your facility.
- Standalone unit (no forklift required).
- 24V battery powered drive, lift, and rotate.

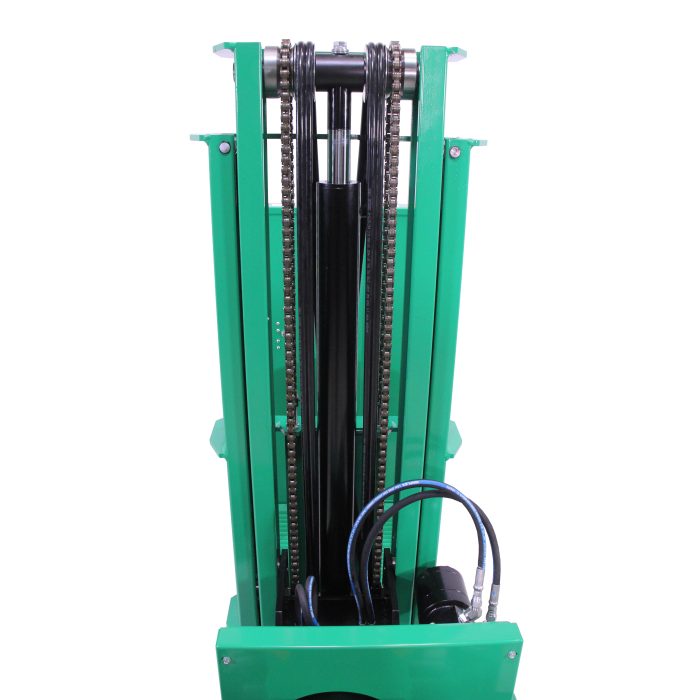

- Telescoping mast retracts to 59″ for overhead clearance.
- Telescoping mast raises middle of drum to a maximum height of 94 1/2” off the floor.
- Minimum center grip height of 13” off the floor.
- Rotate 360° continuously in either direction, at 6 RPM
- Counterweighted unit butts directly up to pallets, shelving, or other items.
- Electronic jaws for securing drums.
- Compatible with steel/plastic/fiber drums, 30-85 gallons (18-28” in diameter).

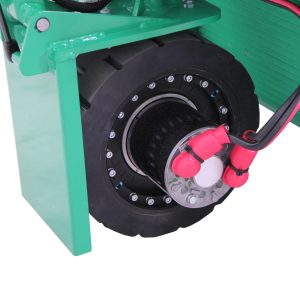

- Drive up to 2.5 MPH on (2) 5″ front swivel casters and (1) 12″ powered rear wheel.
- 79″L x 38″W x (59-95)”H.
- 1,000 lb. capacity.
- Heavy gauge steel construction.
- Premium powder coat paint finish in green.
- Ships fully assembled, ready to use.
- Made in the U.S.A.

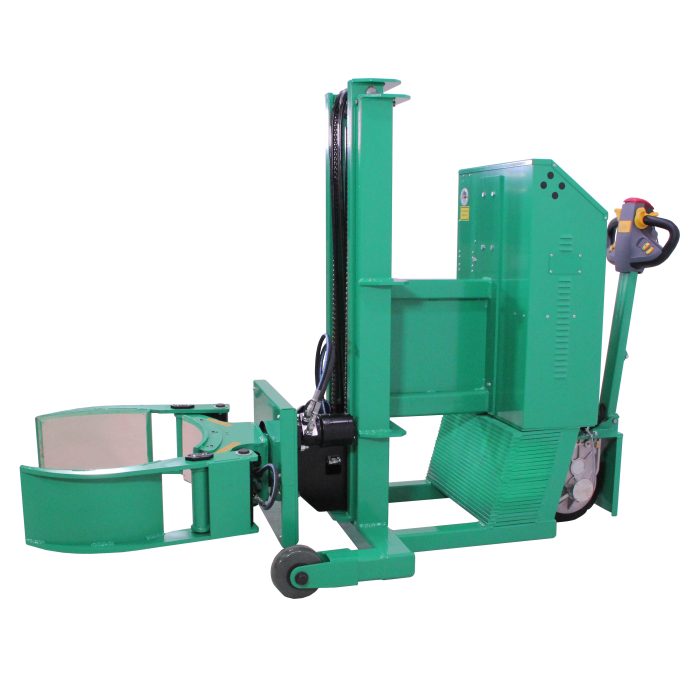

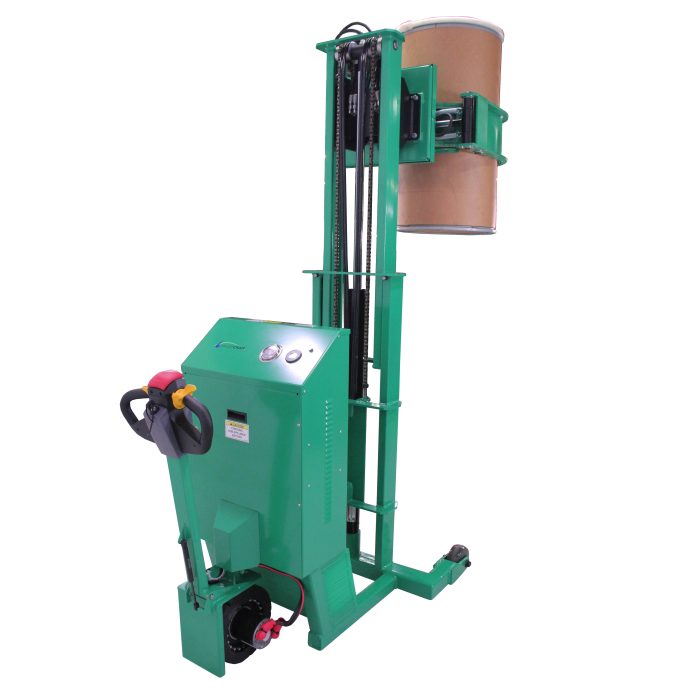

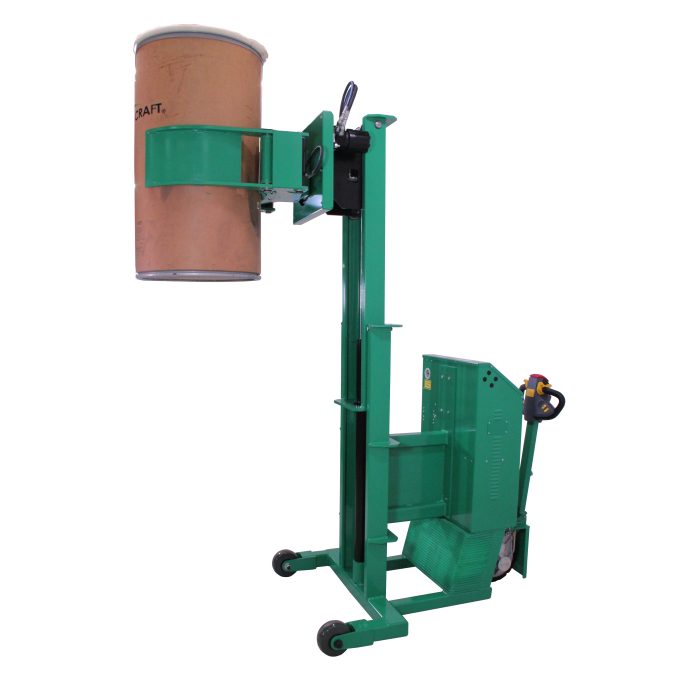

Valley Craft’s Telescoping Fully Powered Drum Lift and Rotator, Roto-Grip, simplifies the lifting, rotating and transporting of drums by utilizing power. A telescoping mast has the added benefit of offering the largest height (94”) while also being able to retract to be the most compact position (59”) to fit under doorways or in tight spaces. Powered clamp and fully lift in less than 30 seconds, 360° continuously rotate in either direction at 6 RPM, and drive up to 2.5 MPH. Compatible with all drum styles (steel, plastic and fiber), drum handling and maneuvering has never been easier.

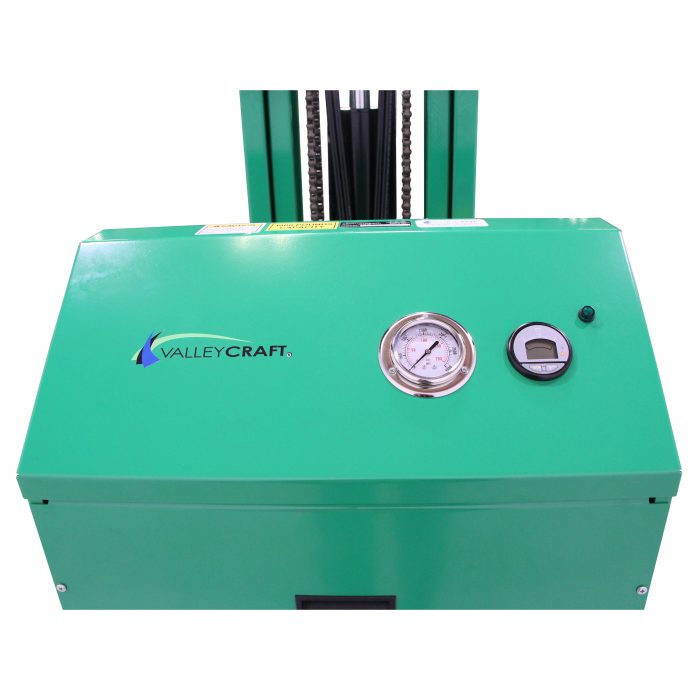

The Grip configuration combines jaws with a hydraulic actuator to grab drums (18-28”), and has an adjustable pressure gauge to ensure a secure grip. With a 1,000 lb. capacity it is simple to maneuver this unit on (2) 6” front rigid casters and (1) 12” rear power drive wheel. The counter-weighted design improves handling with the ability to butt directly up to pallets, shelving, or other units without having to worry about extended straddle legs getting in the way. Optional floor locks are available (sold separately).

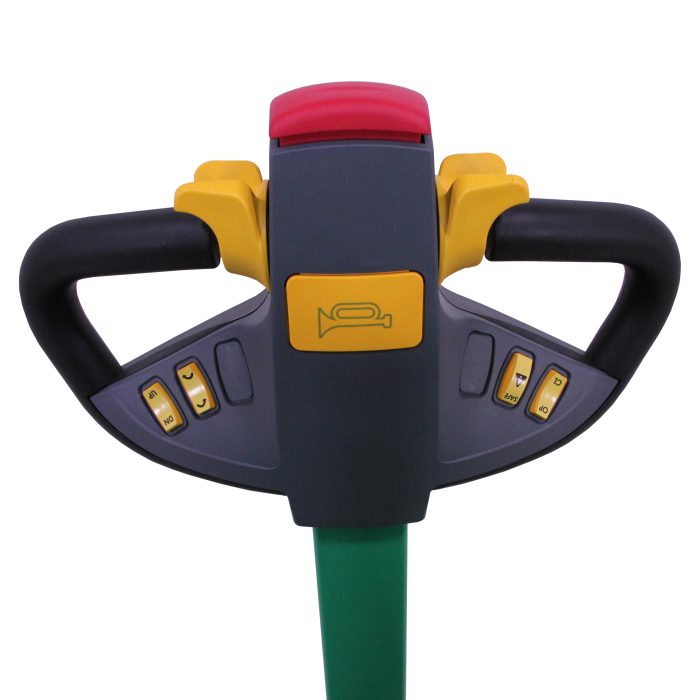

Power source is a 24V system featuring (2) 12V DC batteries and an AC charger (included) that plugs into any standard outlet using an extension cord (not included). This premium system includes an adjustable drive system of 1-2.5 MPH (default set to 2.5 MPH) and an ergonomic Curtis TM-1 Tiller head for simple handling. Tiller handle features keyed on/off, reverse, adjustable throttle, rocker switches, horn and a battery indicator light. Designed as a standalone lift and rotator, forklift assistance is not required.
Valley Craft’s Telescoping Fully Powered Drum Lift and Rotator improves the safety and productivity of any facility that is lifting, rotating, and transporting drums. Constructed of heavy gauge steel with a premium powder coat paint finish in green, you can be confident these units are built to last. All products are shipped fully assembled, ready-to-use, and are made in the U.S.A.

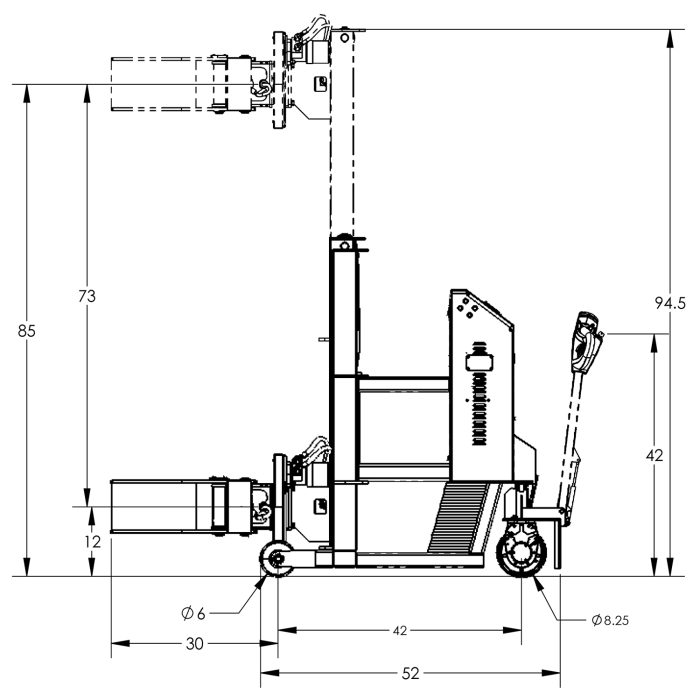

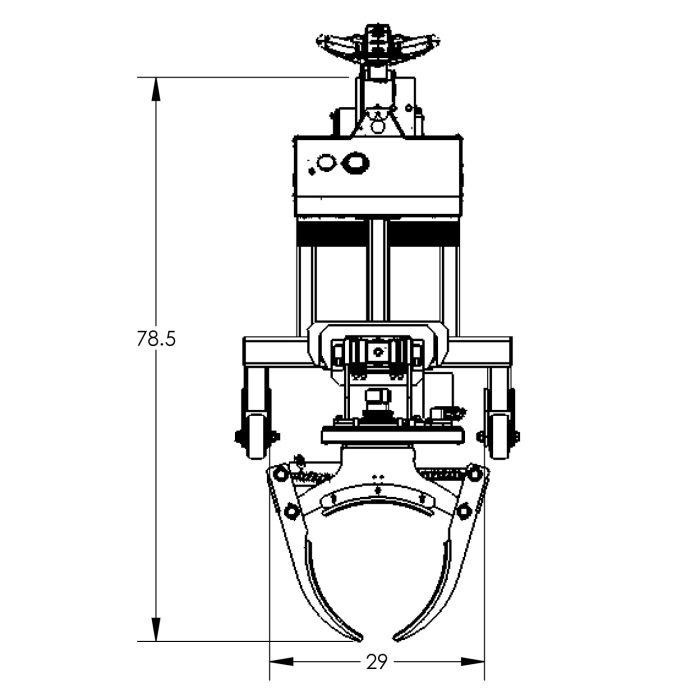

| Overall Dimensions L x W x H (in): | 79 x 38 x 59-95 |
| Product Weight (lb): | 1675 |
| Load Capacity (lb): | 1000 |
| Color: | Green |
| Drum Type: | Steel, Plastic, Fiber |
| Drum Diameter (in): | 18 – 28 |
| Drum Capacity (gal): | 30/55/85 |
| Function – Lift: | Battery Powered Hydraulic Motor |
| Function – Grip: | Hydraulic Cylinder with Jaws |
| Function – Rotate: | Hydraulic Rotate 360° |
| Lift Height (in): | 85 |
| Lift Distance (in): | 73 |
| Lift Speed (in/sec): | 3.4 |
| Turn Radius: | 46 |
| Drive Speed (mph): | 1 – 2.5 |
| Rotate Speed: | 6 RPM |
| Jaw Size W x H (in): | 15 x 9 |
| Top mast Height (Lowered): | 59 |
| Top Mast Height (Extended): | 94-1/2 |
| Base Style: | Counterweighted |
| Power Source: | 24V Battery Powered, Rechargable |
| Caster Configuration: | (2) 5″ Front Rigid & (1) 12″ Rear Powered Wheel |
Locate the model tag on your product to find your model number and manufacture date.
Note: Tag design and location may vary by unit.
