Drum Clamp & Rotate Powered Forklift Attachment, Forklift Powered

SKU: F89702 Category:

MSRP: $8,245.00

  • Quickly and ergonomically transport, rotate, dump and store drums without leaving the seat of your forklift.
  • Powered grip, release, and rotate (360°).
  • Forklift Powered, connect unit by attaching included quick-connect couplers to forklift auxiliary circuit.
  • Hydraulic actuated jaws, with adjustable pressure gauge.
  • Variable speed control.
  • Assists facilities with OSHA compliance and LEAN initiatives.
  • Compatible with steel/plastic/fiber drums, 30-85 gallons (18-28” in diameter).
  • 68″L x 33″W x 19″H.
  • 2,000 lb. capacity.
  • Heavy gauge steel construction.
  • Premium powder coat paint finish in green.
  • Ships fully assembled, ready to use.
  • Made in the U.S.A.

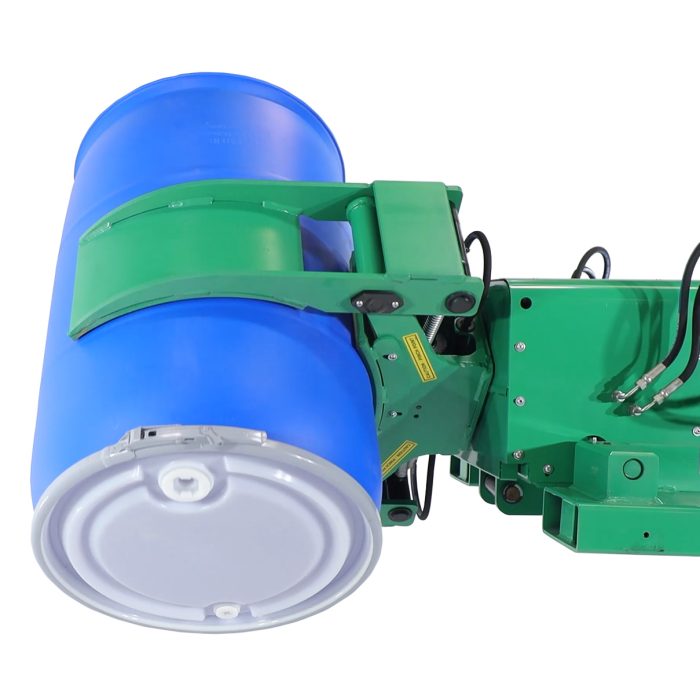

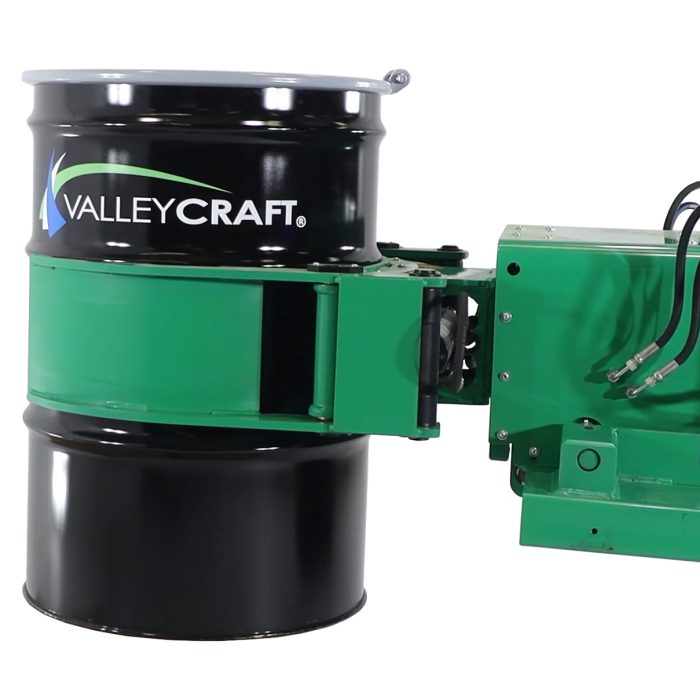

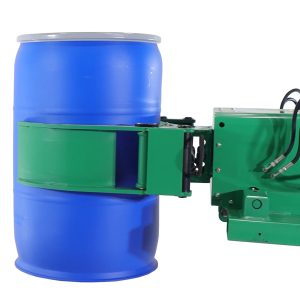

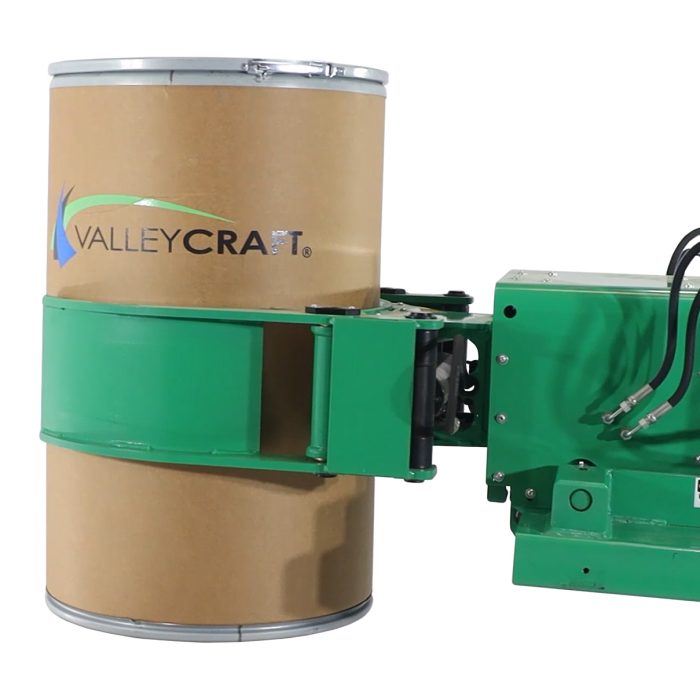

Valley Craft’s Fully Powered Drum Forklift Attachment, Hydra Grip, creates a quick, safe and ergonomically friendly means of handling drums by utilizing power. You can simply lift, rotate, dump, transport and store your drums with ease, without having to leave the seat of your forklift. Compatible with all drum styles (steel, plastic and fiber) with a diameter of 18-28” and a load capacity of 2,000 lbs., drum handling and maneuvering has never been easier.

Units have hydraulic actuated jaws and an adjustable pressure gauge to help ensure the appropriate amount of pressure is applied to secure your drum without damaging it. Variable speed control improves safety and ease of operation. The Hydra Grip features a clamp & rotate, allowing units to rotate 360° continuously to assist with dumping requirements.

Self-Powered or Forklift powered units are available. Self-Powered units come with (2) 12V rechargeable batteries, a battery gauge, and a built-in charger (compatible with any standard outlet and extension cord). Self-powered units work for all environments and do not require a forklift powered connection. Forklift Powered units come with auxiliary lines and quick-connect couplers to easily connect to your forklift (requires available forklift auxiliary circuit). Forklift powered units operate using convenient forklift controls and have the ability to run continuously without the need to recharge.

Valley Craft’s Fully Powered Drum Forklift Attachment, Hydra Grip, improves the safety and productivity of any facility that is maneuvering drums by eliminating the need for manual assistance. Constructed of heavy gauge steel with a premium powder coat paint finish in green, you can be confident these units are built to last. All products are shipped fully assembled, ready-to-use, and are made in the U.S.A.

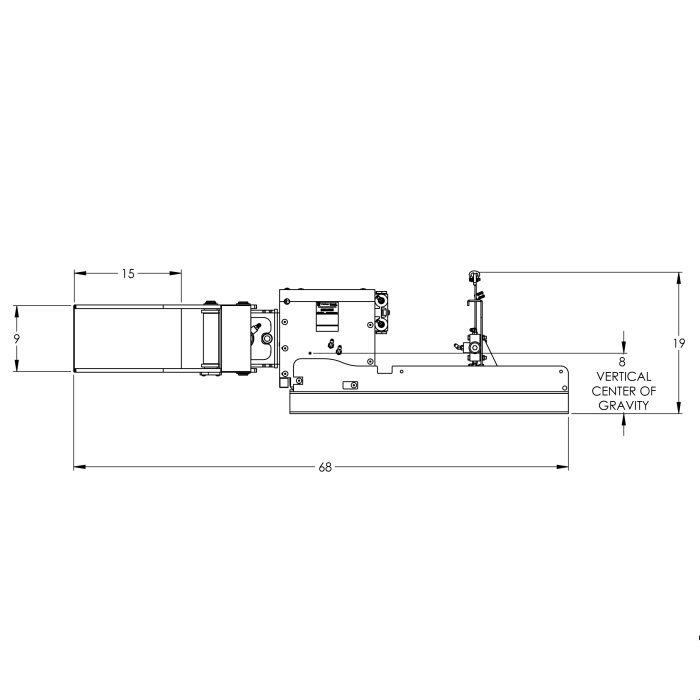

Overall Dimensions L x W x H (in): 68 x 33 x 19
Product Weight (lb): 560
Load Capacity (lb): 2000
Color: Green
Drum Type: steel, plastic, fiber

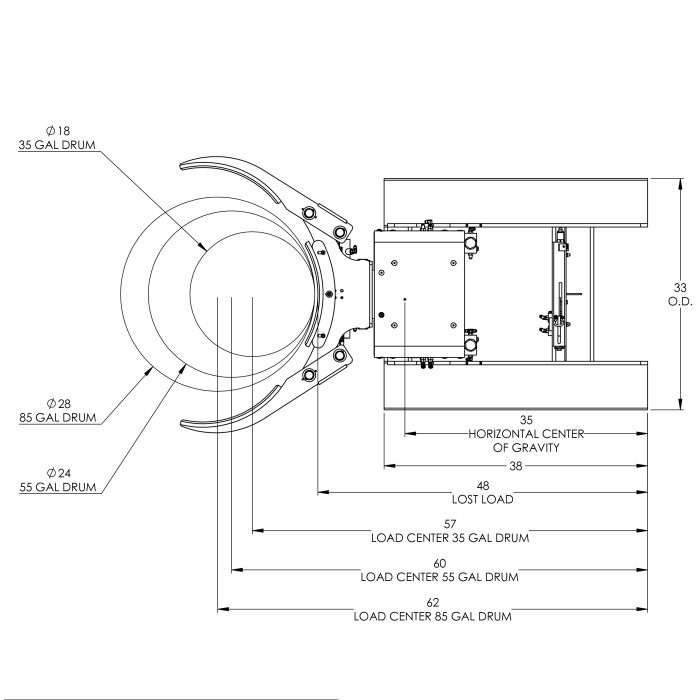

Drum Diameter (in): 18 – 28
Drum Capacity (gal): 30/55/85
Function – Grip: Hydraulic Cylinder with Jaws
Function – Rotate: Hydraulic Rotate 360°
Rotate Speed: 6 rpm
Jaw Size W x H (in): 15 x 9
Power Source: Auxilary hydraulics on forklift
Fork Pocket Size L x W x H (in): 37-1/2 x 6-1/2 x 2-1/2
Fork Pocket Centers (in): 26

Locate the model tag on your product to find your model number and manufacture date.
Note: Tag design and location may vary by unit.

Visit our product manuals page to find your manual.
