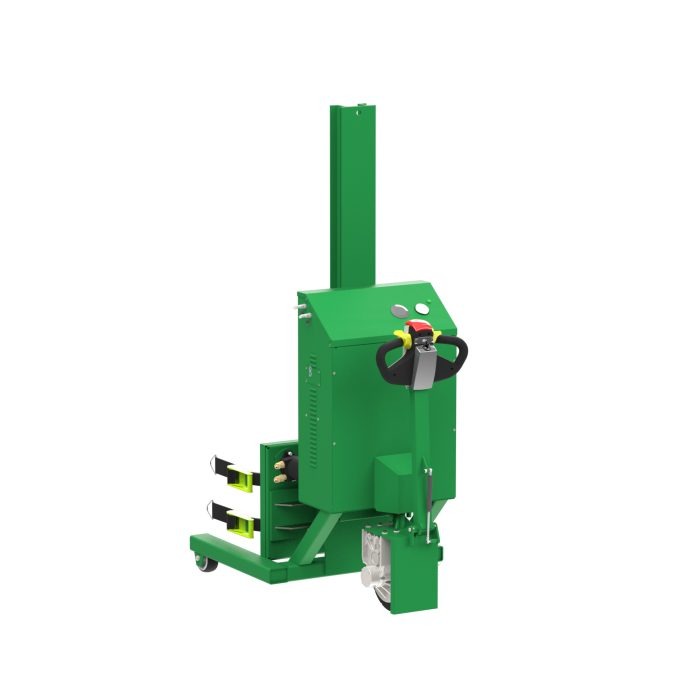

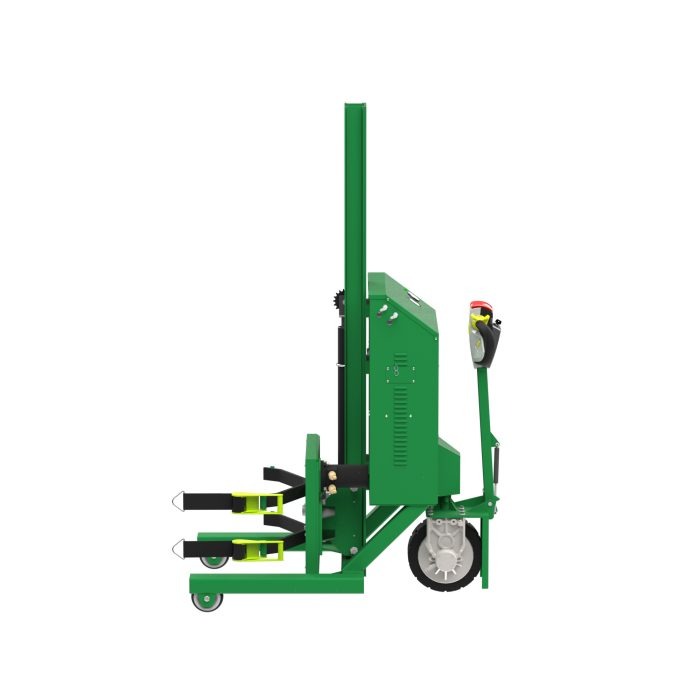

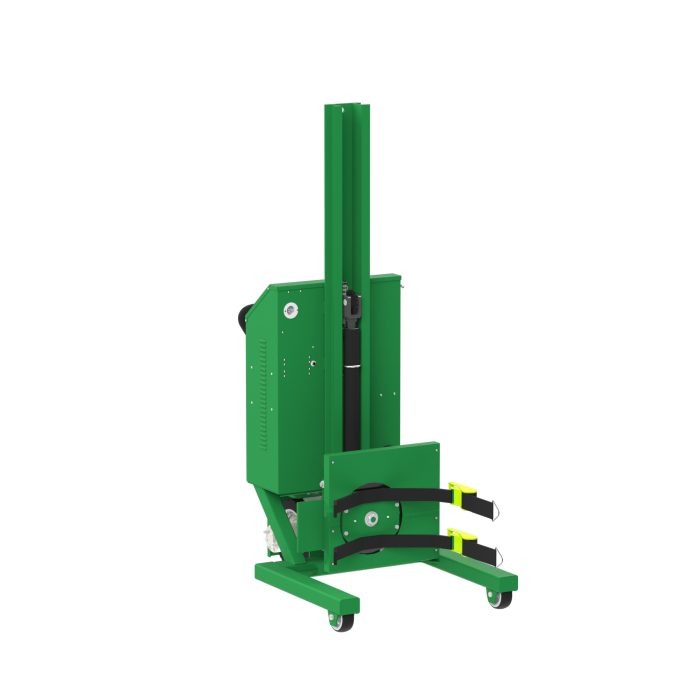

90″ Fully Powered Drum Lift & Rotator, Strap, Straddle
MSRP: $16,995.00
- Safely and ergonomically lift, rotate, and maneuver drums throughout your facility.
- Standalone unit (no forklift required).
- 24V battery powered drive, lift, and rotate.
- Raise middle of drum to a maximum height of 84” off the floor.
- Minimum center grip height of 13” off the floor.
- Rotate 360° continuously in either direction, at 6 RPM
- Straddle legs extend under pallets, shelving, or on outside of drums.
- Dual ratchet straps for securing drums.
- Compatible with steel/plastic/fiber drums, 10-55 gallons (14-24” in diameter).
- Drive up to 2.5 MPH on (2) 5″ front swivel casters and (1) 12″ powered rear wheel.
- 47″L x 32″W x 90″H.
- 1,000 lb. capacity.
- Heavy gauge steel construction.
- Premium powder coat paint finish in green.
- Ships fully assembled, ready to use.
- Made in the U.S.A.
Valley Craft’s 90” Fully Powered Drum Lifts and Rotators simplify the lifting, rotating and transporting of drums by utilizing power. Drums lift up to 84” in height in less than 30 seconds, rotate up to 360° continuously in either direction at 6 RPM, and drive up to 2.5 MPH. Compatible with all drum styles (steel, plastic and fiber), drum handling and maneuvering has never been easier.

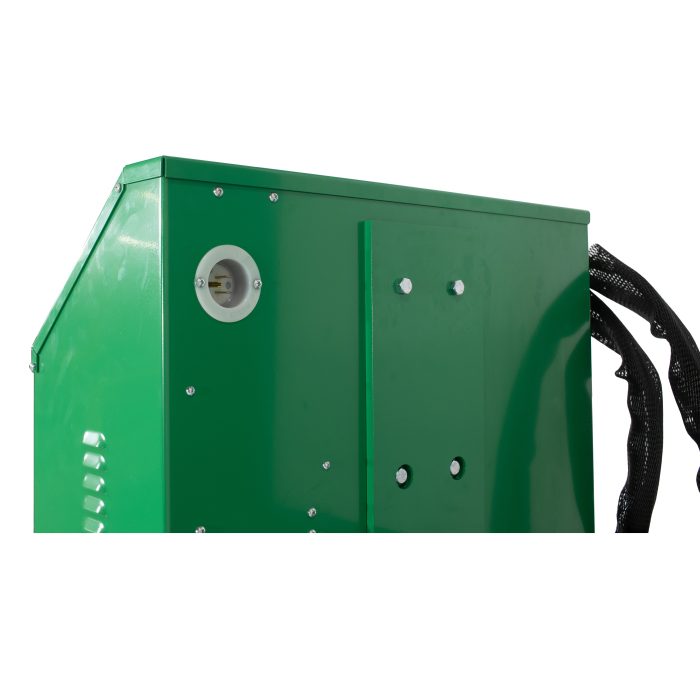

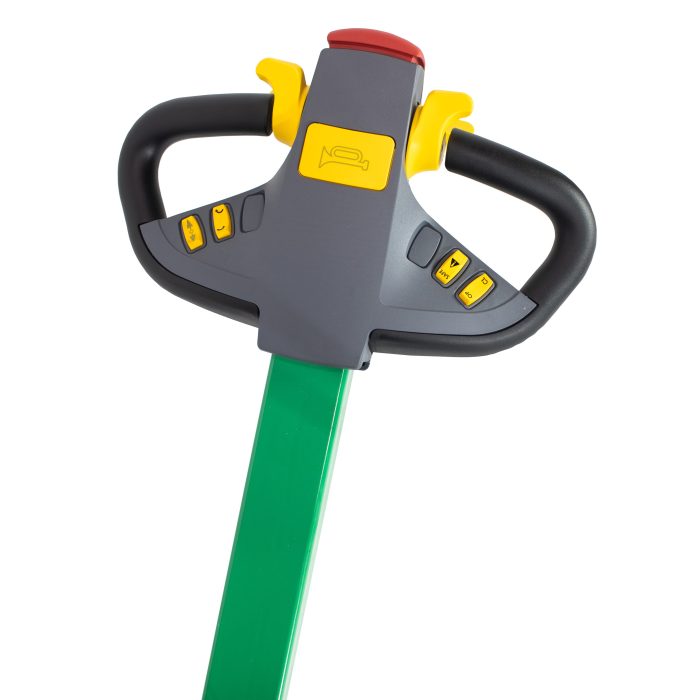

Power source is a 24V system featuring (2) 12V DC batteries and an AC charger (included) that plugs into any standard outlet using an extension cord (not included). This premium system includes an adjustable drive system of 1-2.5 MPH (default set to 2.5 MPH) and an ergonomic Curtis TM-1 Tiller head for simple handling. Tiller handle features keyed on/off, reverse, adjustable throttle, rocker switches, horn and a battery indicator light.

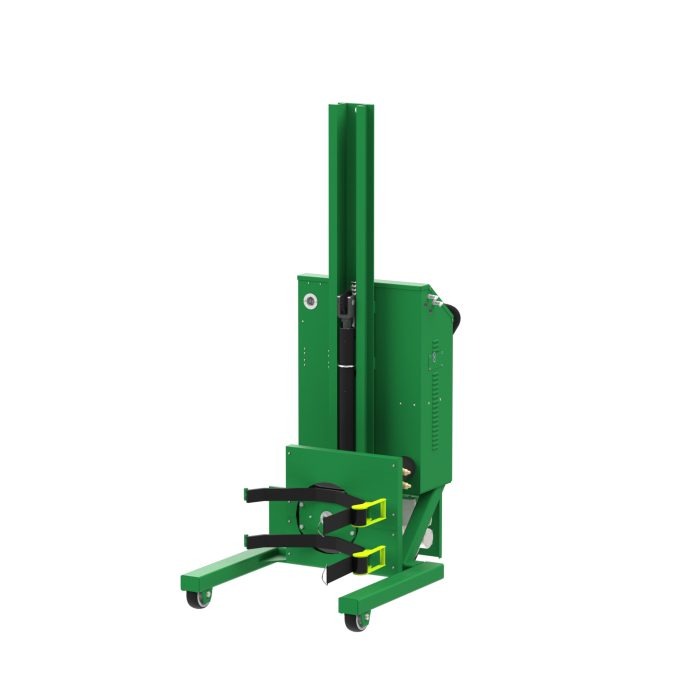

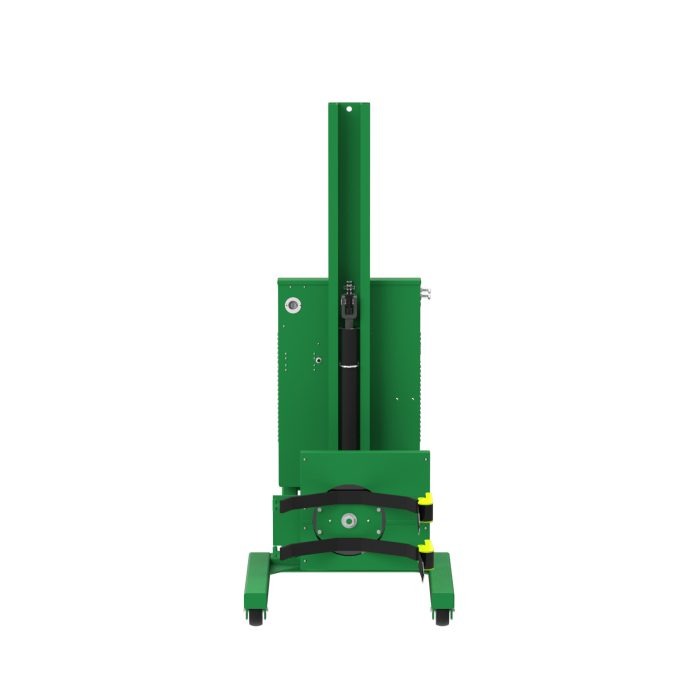

The Strap configuration (Roto-Lift) utilizes the included straps to safely secure drums (14-24”). This hydraulic actuator has an adjustable pressure gauge to help ensure the appropriate amount of pressure is applied to secure your unit without damaging it. With a 1,000 lb. capacity it is simple to maneuver units on (2) 6” front rigid casters and (1) 12” rear power drive wheel. Designed as a standalone lift and rotator, forklift assistance is not required.

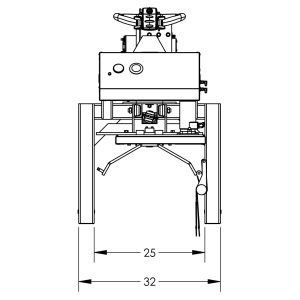

Standard straddle units have extended front legs that go under pallets/shelving or on the outside of the drums when being handled.
Valley Craft’s Fully Powered Drum Lifts and Rotators improve the safety and productivity of any facility that is lifting, rotating, and transporting drums by eliminating the need for heavy manual assistance. Constructed of heavy gauge steel with a premium powder coat paint finish in green, you can be confident these units are built to last. All products are shipped fully assembled, ready-to-use, and are made in the U.S.A.

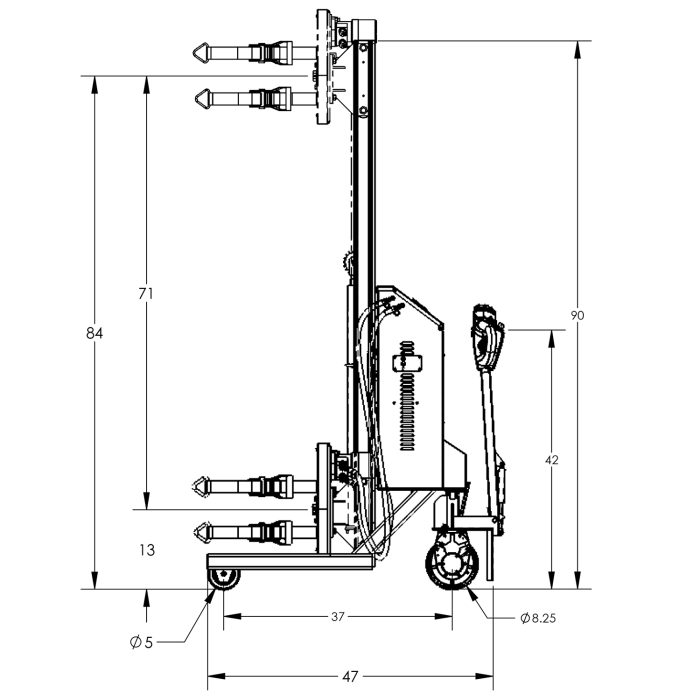

| Overall Dimensions L x W x H (in): | 47 x 32 x 90 |
| Product Weight (lb): | 760 |
| Load Capacity (lb): | 1000 |
| Color: | Green |
| Drum Type: | Steel, Plastic, Fiber |
| Drum Diameter (in): | 14 – 24 |
| Drum Capacity (gal): | 30/55 |
| Function – Lift: | Battery Powered Hydraulic Motor |
| Function – Grip: | Ratchet Straps |
| Function – Rotate: | Hydraulic Rotate 360° |
| Lift Height (in): | 84 |
| Lift Distance (in): | 71 |
| Lift Speed (in/sec): | 3.4 |
| Turn Radius: | 40 |
| Drive Speed (mph): | 1 – 2.5 |
| Rotate Speed: | 6 RPM |
| Base Style: | Straddle |
| Power Source: | 24V Battery Powered, Rechargable |
| Caster Configuration: | (2) 5″ Front Rigid & (1) 12″ Rear Powered Wheel |
Locate the model tag on your product to find your model number and manufacture date.
Note: Tag design and location may vary by unit.
